AVENTOS HKi

A well-thought-out assembly concept

Choose for yourself how to blend our narrowest lift system seamlessly into cabinets. Depending on the equipment in your workshop and whether or not you want to outsource any steps in the process, you have a variety of assembly options available to suit your needs.

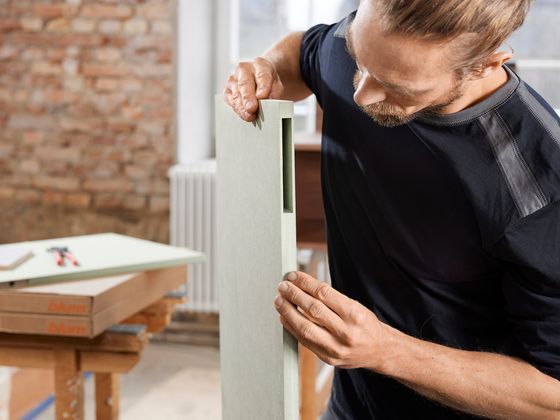

Fully integrated with raw boards set

Our pre-milled MDF raw boards set already has the central cutout for AVENTOS HKi. Cut the raw board (450 mm x 600 mm x 19 mm) to your desired size and attach facings or finish to suit the look of the rest of the cabinet.

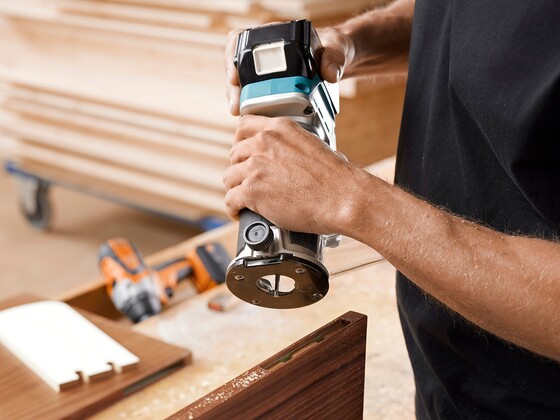

We offer a special flush milling cutter for the router to re-expose the cutout after applying veneer.

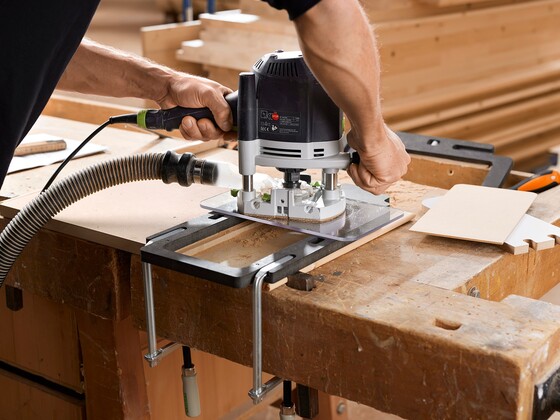

Fully integrated with milling template set

We have not only developed special router templates but also a special copy router bit so that you can precisely create the recesses in the side panel for the lift mechanism and insert panel.

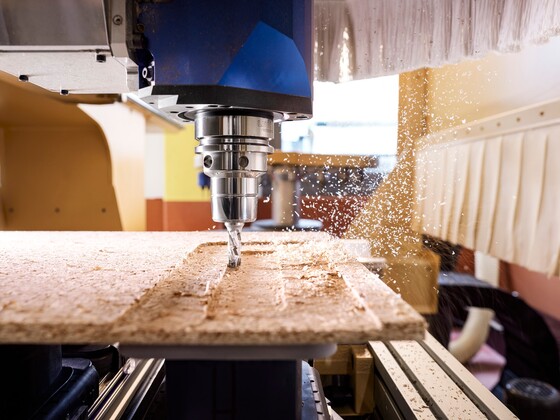

Fully integrated with double shell

Use a CNC machine to surface mill the half cabinet sides and then glue the two halves together.

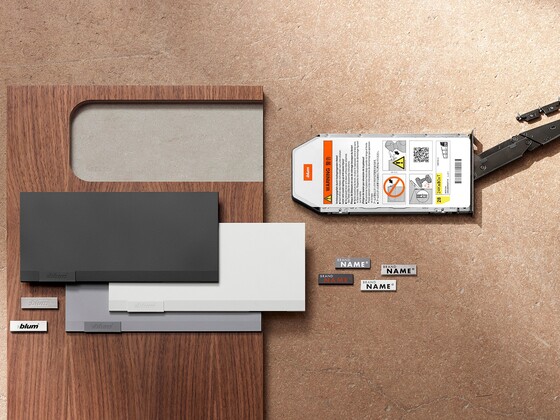

Semi-integrated with cover cap

Use a CNC machine or router to surface mill your cabinet side for the lift mechanism. This is concealed in the cabinet with a color-coordinated cover cap. Customization options are available with different branding elements.

Easy assembly and adjustment

1 7

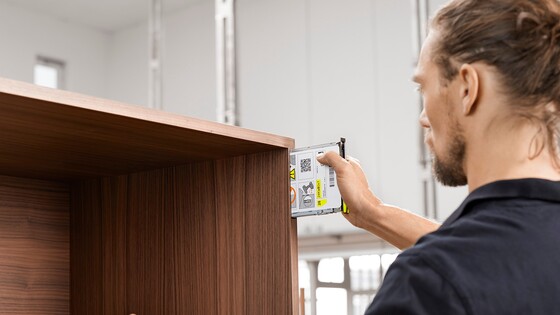

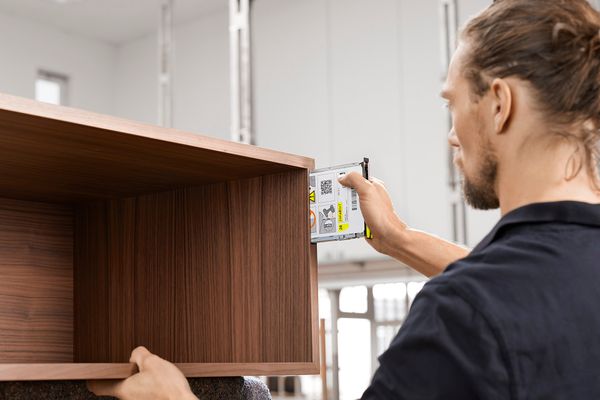

Slide in

Slide the lift mechanism completely into the recess.

Press-fit connection

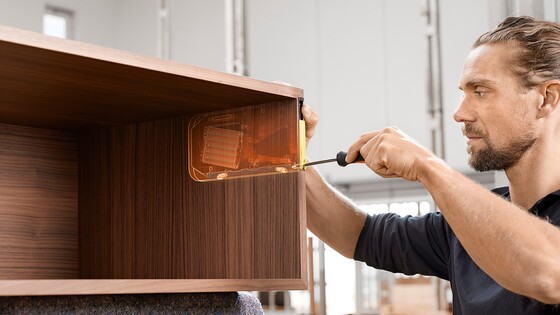

Turn the screw until the lift mechanism is pressed into the cabinet.

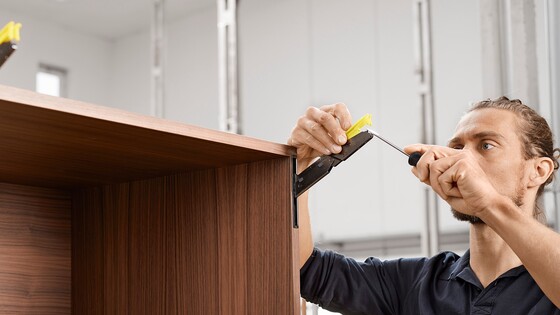

Release

Release the transportation lock over the CLIP mechanism.

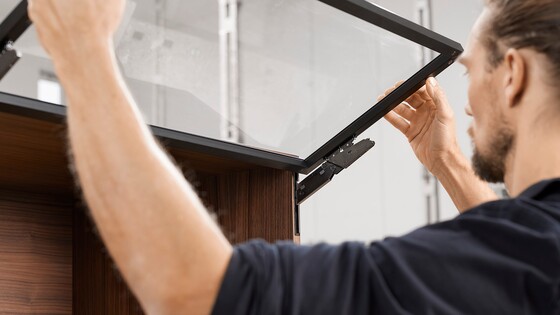

Clip on

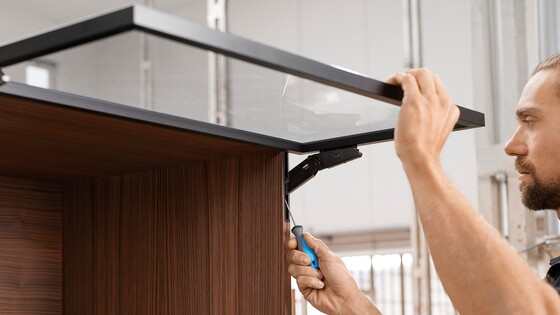

Easily clip on the door.

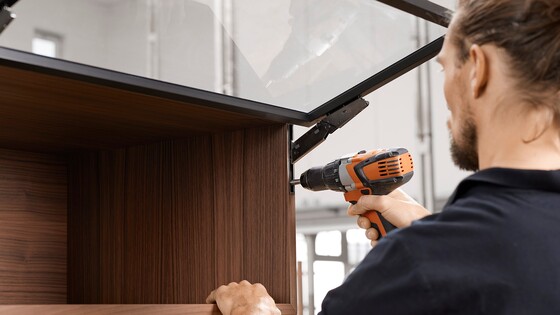

Lift mechanism adjustment

From the front, adjust the lift mechanism precisely to the weight of the door, preferably with a cordless screwdriver.

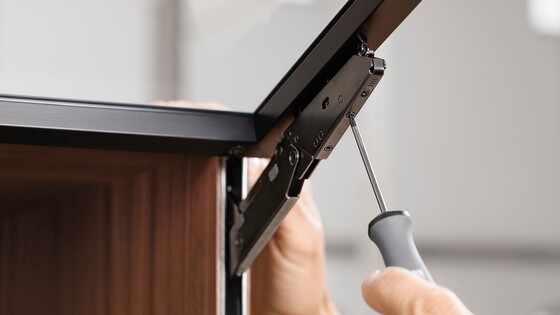

Three-dimensional adjustment

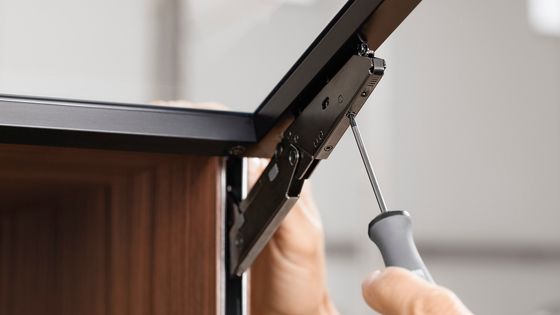

Use TORX screws to adjust the gap layout three-dimensionally.

Integrated opening angle stop

The integrated opening angle stop allows you to adjust how far the door should open.

Blum assembly devices

Get perfect results every time. Our assembly devices make your work easier by helping you assemble and install Blum products quickly, precisely and error-free.

Select product group

Select product

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select product

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select product

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select wooden part

Select application

Select product

Select wooden part

Select application

Select wooden part

Select application

Select product

Select wooden part

Select application

13 Results found

Routing template set for AVENTOS HKi

For milling the cabinet side for the lift mechanism and insert panel

Multi-functional

ECOJIG

For drilling the mounting positions for wing mounting and wing adapter plates

Multi-functional

MINIPRESS top with EASYSTICK

Drilling and insertion machine for Blum hardware, vertical and horizontal drilling with EASYSTICK

Application video

Drilling template for hinge systems

For transferring measurements for hinge and mounting plate mounting positions from the door to the cabinet and vice versa

Drilling template for BLUMOTION/TIP-ON

For drilling the edge mounting positions for BLUMOTION (on handle side and hinge side) and TIP-ON

INSERTA boring template

For pre-drilling the mounting positions of hinges as well as mounting plates and adapter plates

Multi-functional

Universal drilling template

For pre-drilling the mounting positions for cabinet profiles, lift mechanisms, mounting plates and adapter plates

ECODRILL

Simple hand-held tool for drilling accurate Blum hinge drilling patterns

Marking template for AVENTOS HS top | HL top | HK top front fixing bracket

For marking the mounting positions for AVENTOS front fixings

Drilling template for the SERVO-DRIVE switch

Simple hand-held tool for precision drilling of holes for the SERVO-DRIVE switch

Multi-functional

Universal individual template

For pre-drilling the mounting positions for cabinet profiles, lift mechanisms, mounting plates and adapter plates

Multi-functional

MINIPRESS P

Drilling and insertion machine for Blum hardware and vertical drilling. Can be retrofitted with EASYSTICK

Multi-functional

Universal drilling template

For marking or pre-drilling mounting positions for lift, box and runner systems

EASY ASSEMBLY App

The EASY ASSEMBLY App provides step-by-step instructions and videos right in the palm of your hand—whether you're in the cabinet shop or on the jobsite. Download it in the Apple App Store or Google Play.

Learn more

Assembly instructions

AVENTOS HKi

PDF | 3 MB | 11-27-2023
